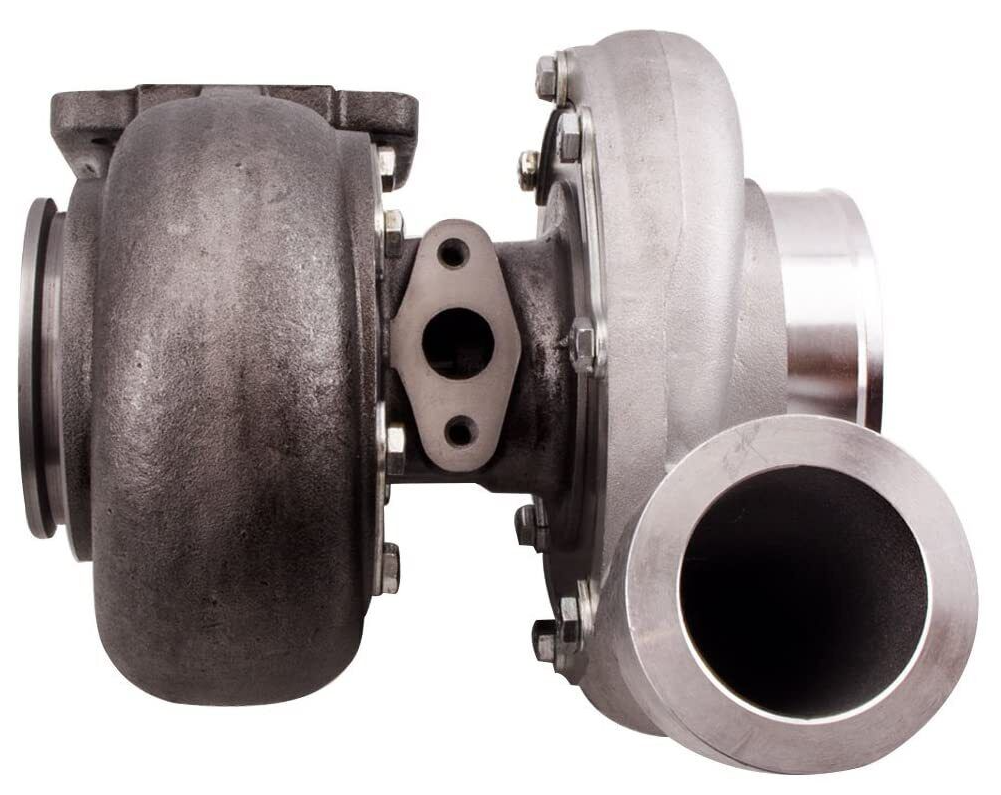

GT45 Turbo charger V-Band 600+BHP T4 V-band Flange 1.05 A/R .66 twin scroll billet compressor wheel turbocharger

Application

universal application turbo, some modifications may be required based on the individual vehicle.

Perfect for all 4.0L-6.0L engine

Feature

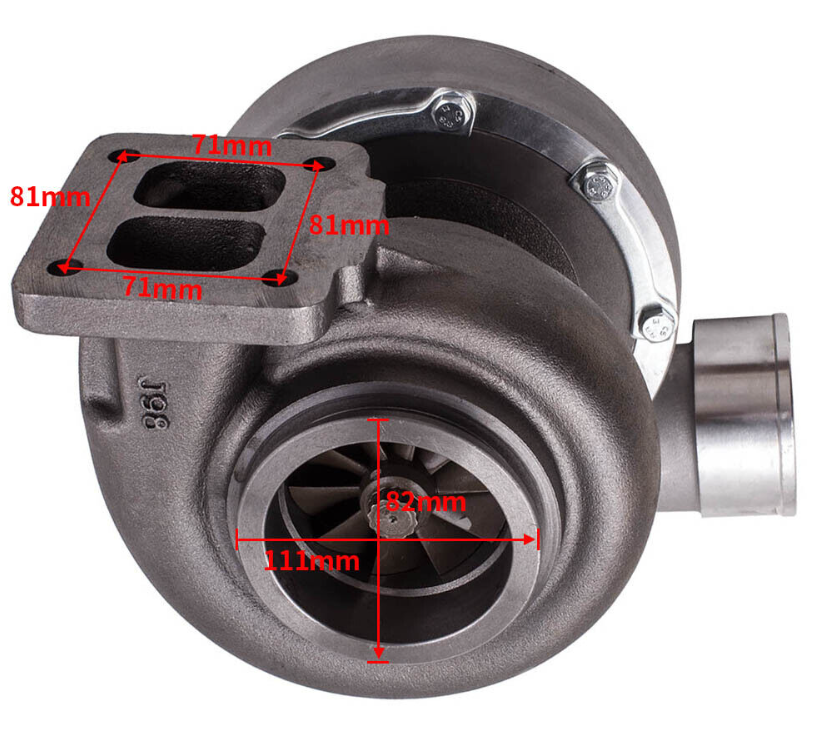

Exhaust Inlet (Turbo Manifold) Flange: T4 Flange

Exhaust Outlet (Downpipe) Flange: 3.5 " V-Band Flange

Compressor Trim: 49.6

Compressor Inducer Diameter: 69 mm

Compressor Exducer Diameter: 98 mm

Compressor Air Inlet Size: 107mm

Compressor Air outlet Size: 86.3mm

Compressor A/R: 0.66

Turbine Trim: 77.6

Turbine Inducer Diameter: 88 mm

Turbine Exducer Diameter: 77.5 mm

Turbine A/R: 1.05

Bearing Type: Wet Float

Cooling Type: Oil Cooled

Wastegate: External

Horsepower:  Up to 600+HP

REFERENCE

GT45 T4 V-BAND 1.05 A/R
