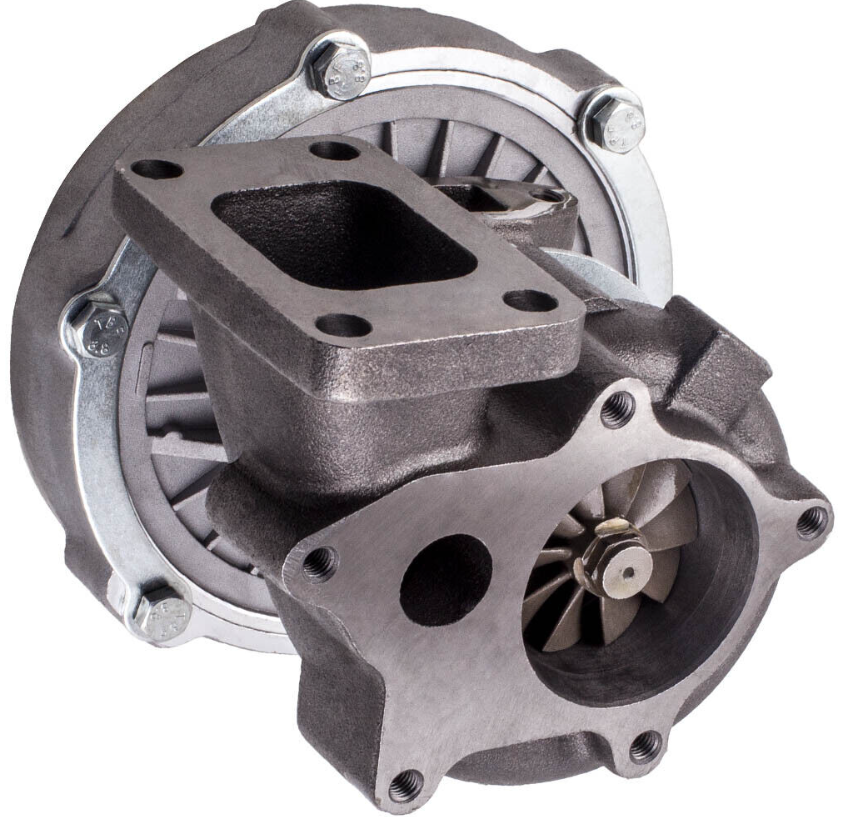

Upgrade T04e T3/t4 A/r.63 400hp Stage Iii Boost Turbocharger

Application

For 1.5L to 2.5L any 4/6 cylinder engine

Feature

Turbine Intake Flange: T3 T4 4 bolt Flange Patterns

Turbine Exhaust Flange: Standard T3 5 bolt flange pattern

Internal Wastegate: No

Maximum PSI 19（1.3Bar）

Compressor Trim: 48.1

Compressor A/R: 0.5

Compressor Inducer: 52.7mm

Compressor Exducer: 76mm

Turbine Trim: 74.2

Turbine A/R: 0.57

Turbine Inducer: 64.8mm

Turbine Exducer: 55.8mm

Turbine exhaust inlet: 45mm/87mm

Compressor outlet: 42mm(inside diameter)、52mm(Outer diameter)

Compressor inlet: 68 mm(inside diameter)、77mm(Outer diameter)

Cooling Type: Oil Cooled

Bearing Type: Floating Bearing/Journal Bearing

Trust Bearing: 270 degree

Horsepower:  Up to 400+HP

REFERENCE

T04E,T3,T4
