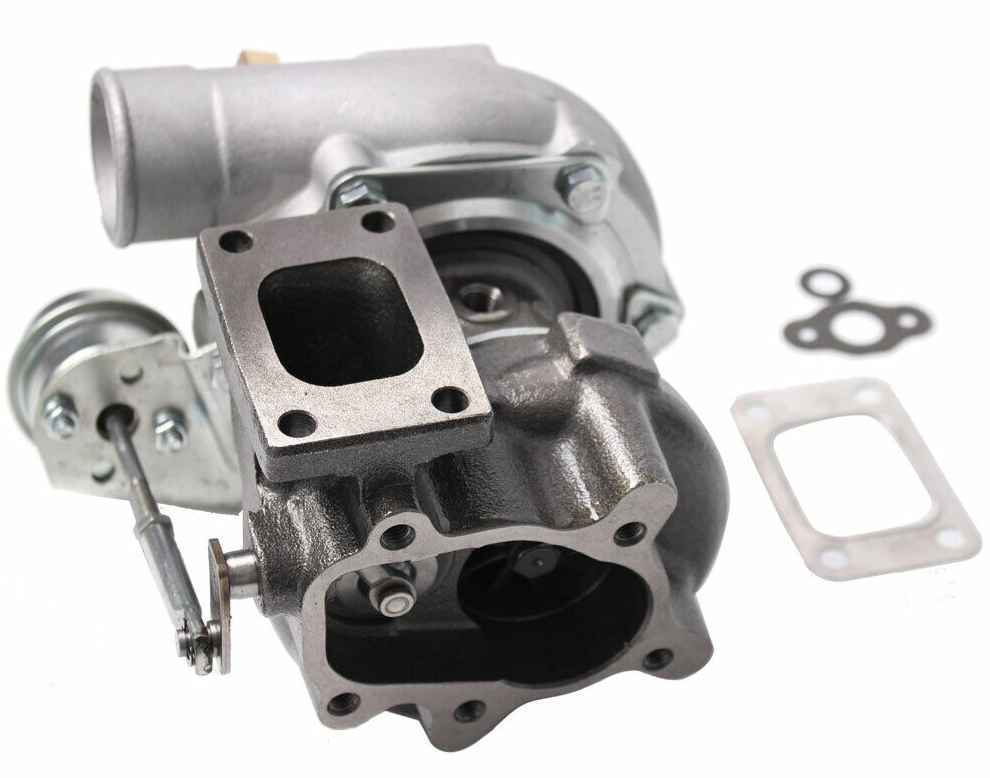

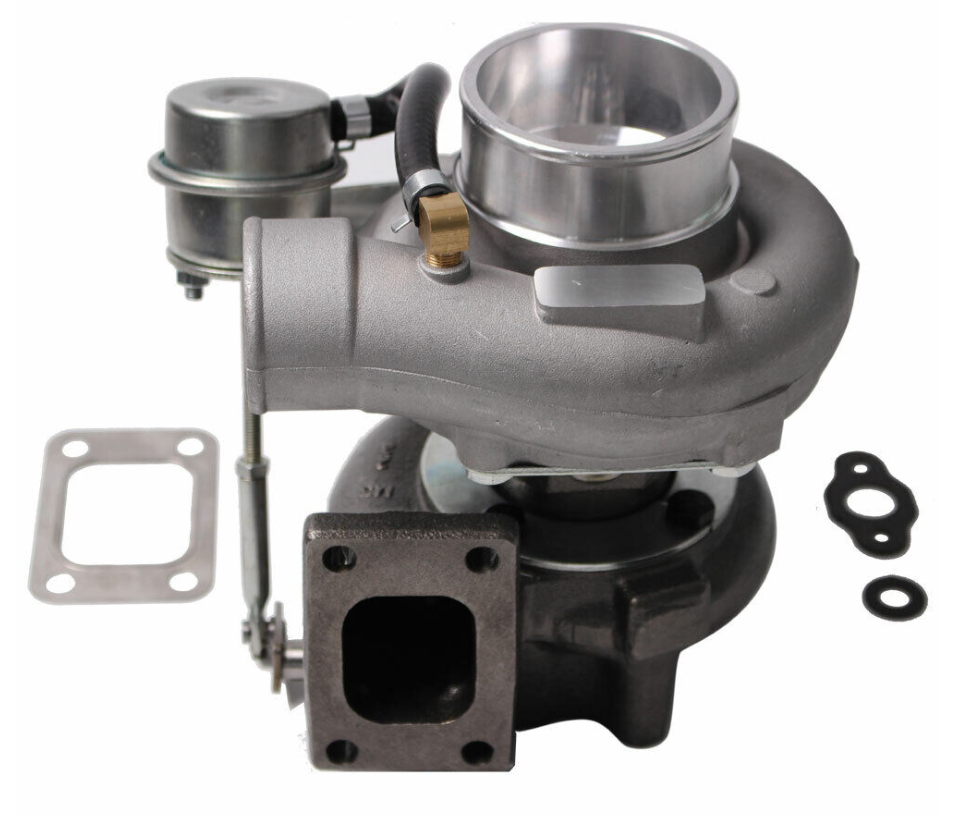

Street Turbo Billet Compressor Wheel High quality for GT25 GT28 GT2871 GT2860 AR.60 .64 Water+Oil Cooling

Application

Universal for Turbo Manifold with T25 Flange(T28 Flange can be converted to T25 Flange, Adrapter is needed).

Perfect for all 1.5L-2.0L engine，for all 4 cylinder engine

Feature

Exhaust Inlet Flange: Standard T25 Flange

Exhaust Outlet Flange: 5-Bolt

Turbine Side:

Turbine Trim: 76.3

Turbine A/R: 0.64

Turbine Inducer Diameter: 53.8mm

Turbine Exducer Diameter: 47mm

Compressor Side:

Compressor Trim: 48

Compressor A/R: 0.60

Compressor Inducer Diameter: 49.2mm

Compressor Exducer Diameter: 71 mm

Bearing Type: Wet Float

Cooling Type: Water + Oil Cooled

Wastegate: Internal Wastegate

Oil Restrictor: Yes

Oil Restrictor size：inside diameter 2mm

Oil Feed Thread Size: M12*1.25

Oil Drain Size: 14mm

Oil Drain Thread Size: M8*1.25

Oil Drain Thread Pitch: 40mm

Water Thread Size: M14*1.5

Horse Power: Boost Horse Power up to 350BHP

Turbo Type: Individual

REFERENE

GT28,GT25,GT2871
