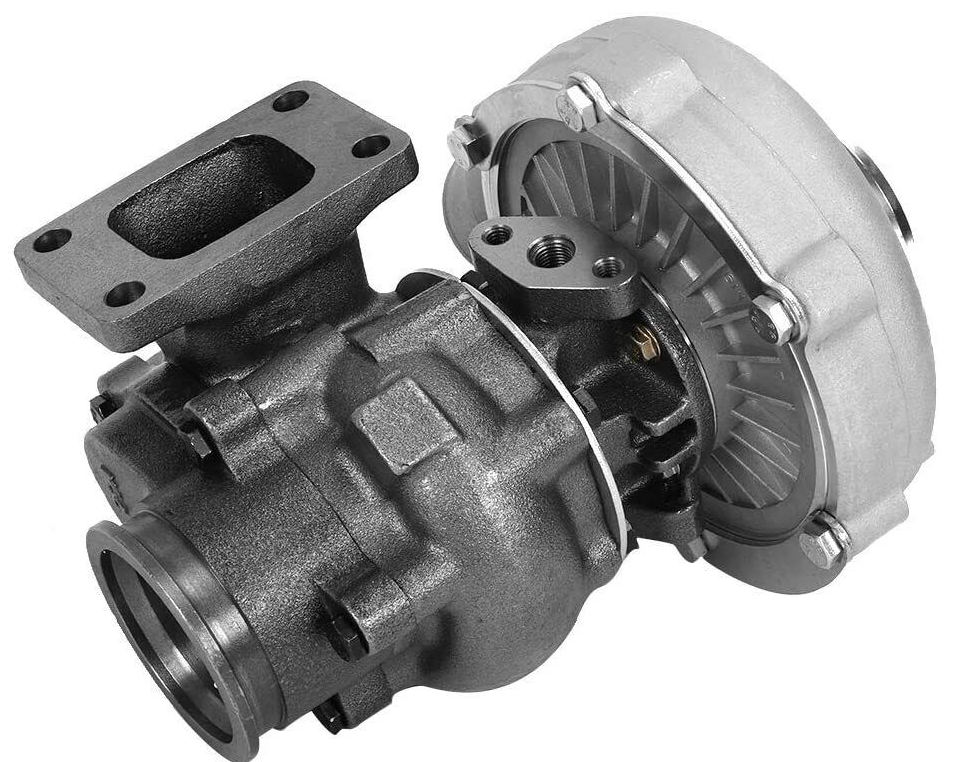

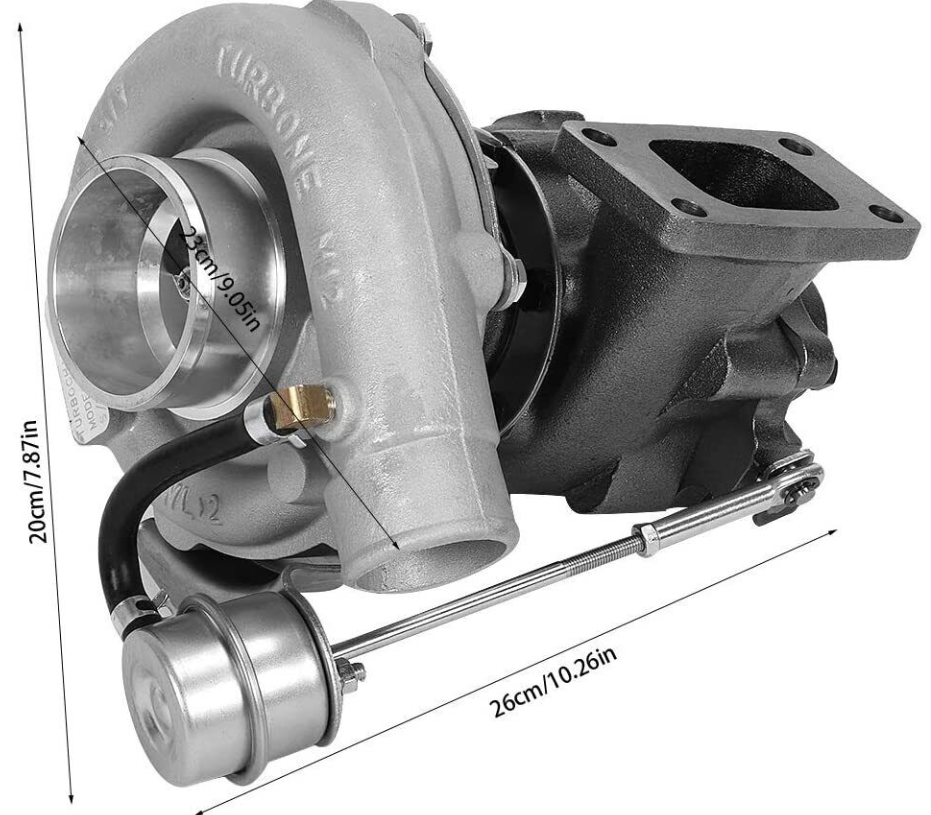

NEW T3/t4 T04e V-band Turbocharger Turbo .63 A/r W/ Internal Wastegate Universal

Application

For 1.5L to 2.5L any 4/6 cylinder engine

Maximum 18PSI

Note:Please confirm that your car's displacement is between 1.5-2.5L .

Feature

Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns

Exhaust (Downpipe) Flange: Standard T3 5 bolt downpipe flange pattern

Cooling Type: Oil Cooled

Wastegate: External Wastegate

Compressor Trim: 48.1

Compressor A/R: 0.5

Compressor Inducer: 52.7mm

Compressor Exducer: 76mm

Turbine Trim: 74.2

Turbine A/R: 0.63

Turbine Inducer: 64.8mm

Turbine Exducer: 55.8mm

Turbine exhaust inlet：44.5mm/81mm

Compressor outlet：45mm(inside diameter)、53mm(outer diameter)

Compressor inlet：68 mm(inside diameter)、72mm(outer diameter)

Horsepower:  Up to 400+HP

REFERENCE

SDD-TBCT04ET, TT04ET-003
